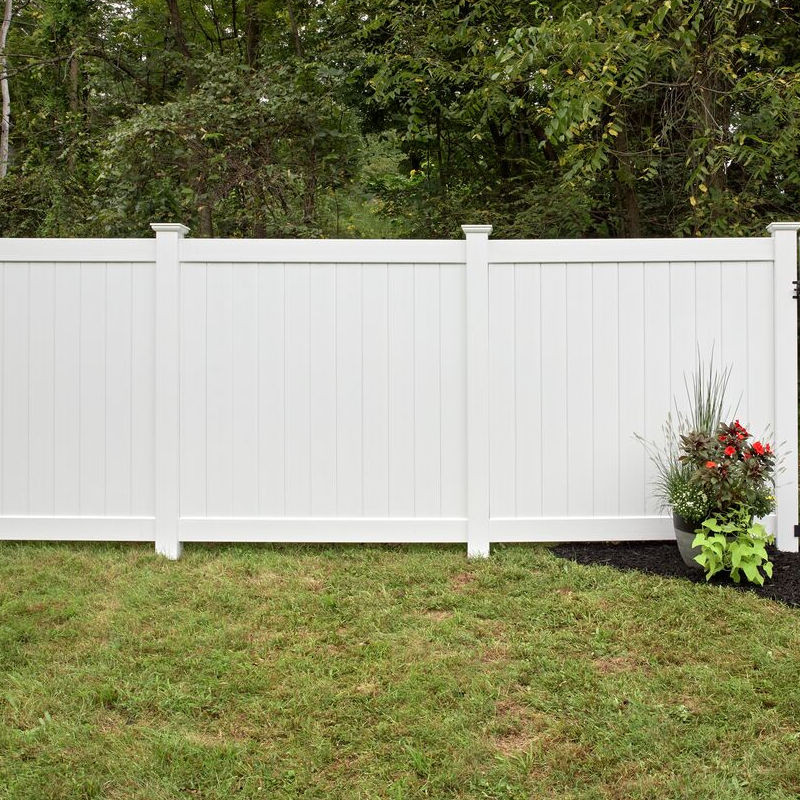

Catalyst Newbury Standard Solid Vertical Privacy Fence Panel

Product Description

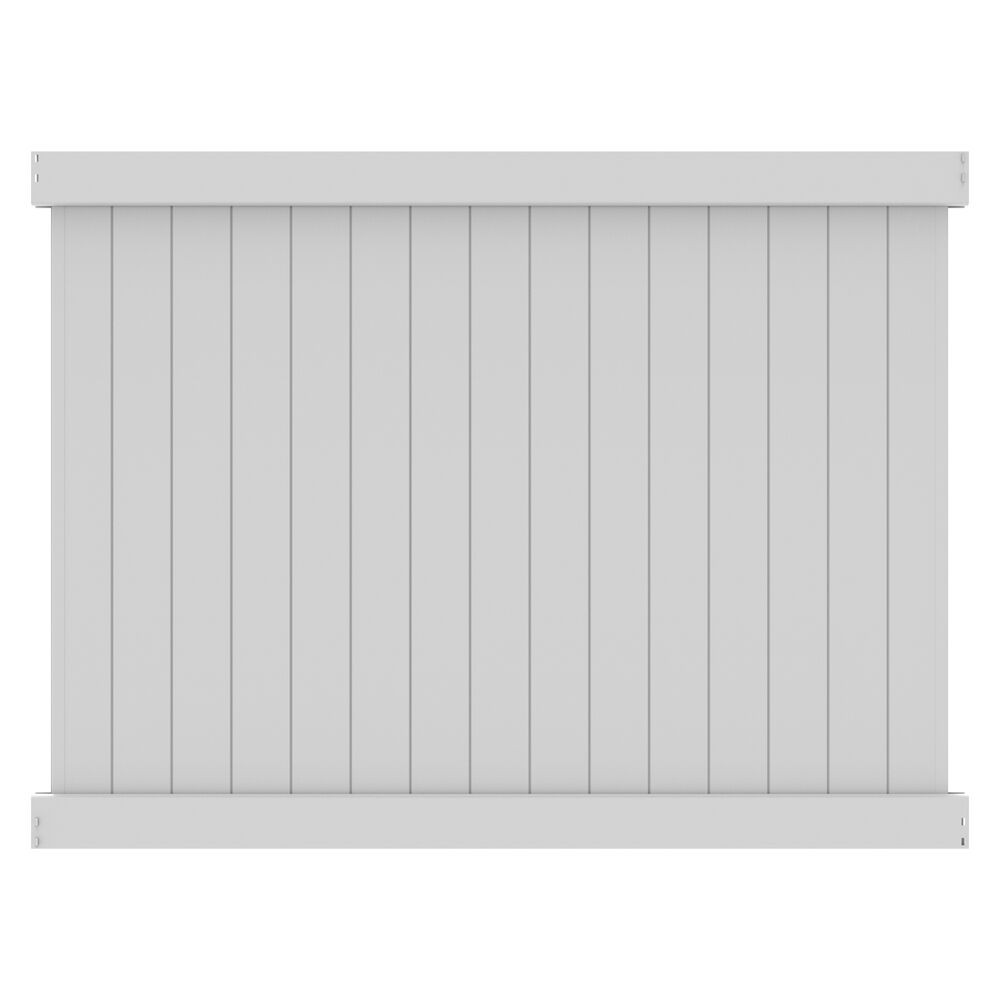

Catalyst Newbury Standard Solid Vertical Vinyl Privacy Fence Panel — Element Signature Rail

• Solid vertical privacy — 7/8" x 6" tongue-and-groove boards lock together for a gap-free privacy wall.
• Element Signature rail — Panels are built with the 1.75" x 5.5" Element Signature top and bottom rail for a clean, durable frame.
• Multiple heights and colors — Available in 4′ (White), 5′ (White), 6′ (White, Sand, Clay, Gray), and 8′ (White, Sand). Other rail/color combinations available on request.
• High-end performance at a great price — Newbury Standard blends premium privacy and durability with a very competitive cost.

Catalyst Newbury Standard Solid Vertical Privacy Fence Panels deliver the classic Newbury look and full-privacy performance using smooth, flat colors at an accessible price point. Each section uses 7/8" x 6" tongue-and-groove pickets that lock together to eliminate gaps, framed by the Element Signature 1.75" x 5.5" rail for a clean, straight top line. Height options include 4′ and 5′ in White, plus 6′ in White, Sand, Clay, or Gray, and 8′ in White or Sand, giving you flexibility for everything from front-yard accents to full backyard enclosures. Behind the look, Newbury is built on the Catalyst vinyl platform with technologies such as SolarGuard® fade resistance and StayStraight® structural integrity for long-term performance. Want a wood-look upgrade instead? Consider stepping up to the Newbury Select Smooth Woodgrain Solid Vertical Privacy Fence Panel or the Newbury TimberGrain Premium LX series.

Why Choose This

• Great value — You get the core Newbury privacy and performance features at a lower cost than woodgrain and LX TimberGrain versions.
• Flexible height and color mix — Choose 4′ or 5′ White for shorter runs, or step up to 6′ or 8′ in multiple colors where maximum privacy is needed.
• Element Signature rail standard — The 1.75" x 5.5" rail provides a strong, refined frame without the cost of oversized premium rail profiles.
• System-matched options — Pair with Newbury Vinyl Privacy Fence accessories, posts, and gates for a complete, cohesive system.

Specifications

Installation (Quick Steps)

• Plan your layout — Decide on panel height (4′, 5′, 6′, or 8′) and color, then map post locations based on the panel width (6′ or 8′ depending on your selection).
• Set posts in concrete — Install 5" x 5" vinyl posts in concrete footings sized for local frost and wind conditions, keeping post tops aligned and centers accurate for panel insertion.
• Install Element Signature rails — Once concrete has cured, insert the Element Signature rails into routed post openings at the manufacturer-recommended heights.
• Drop in the boards — Slide tongue-and-groove boards into the rails, locking each board into the next, and finish the ends with U-channels or end channels as specified.
• Finish details — Install matching post caps, hang any Newbury gates, and rinse off any dust or residue from installation.

Buying Guide

• Choose your height and color — Use 4′ or 5′ White for front yards or lower runs, 6′ for standard backyard privacy (with White, Sand, Clay, or Gray options), and 8′ (White or Sand) where extra screening or noise reduction is desirable.
• Decide on panel width — 8′ panels reduce post count on long straight runs; 6′ widths can be helpful around tight corners or shorter spans.
• Match posts and caps — Pair panels with matching 5" x 5" posts and post caps (pyramid, New England, etc.) to complete the look; consider gate post reinforcement at wider gate openings.
• Compare with other Newbury options — If you want a wood-look finish, review Newbury Select Smooth Woodgrain or Newbury TimberGrain Premium LX before finalizing your choice.

Frequently Asked Questions

What heights and colors are available for Newbury Standard Solid Vertical Privacy Fence Panels?

Newbury Standard panels are available in 4′ and 5′ heights in White, 6′ height in White, Sand, Clay, or Gray, and 8′ height in White or Sand.

What rail profile is used on this Newbury Standard listing?

This product listing is for Newbury Standard panels built with the Element Signature 1.75" x 5.5" rail as the top and bottom rail.

Can I order Newbury Standard panels with a different rail style?

Yes. Other rail profiles such as Element LX, Element Reserve, or Vertex Grand may be available in select colors as a special-order option. Contact us with your height, color, and quantity for a custom quote.

Do Newbury Standard panels provide full privacy?

Yes. The 7/8" x 6" tongue-and-groove boards lock together to eliminate gaps, providing a solid, full-privacy fence when installed correctly.

How does Newbury Standard differ from Newbury Select and Newbury TimberGrain Premium LX?

Newbury Standard uses smooth solid colors at a more economical price point, while Newbury Select Smooth Woodgrain adds smooth wood-inspired finishes, and Newbury TimberGrain Premium LX combines textured woodgrain surfaces with heavier LX rail profiles for a more premium appearance.

Comparison

Not sure whether Newbury Standard, Select Smooth Woodgrain, or TimberGrain Premium LX is right for your project? Share your height, color, and budget goals and we can help you compare options and build a complete material list.
