Product Description

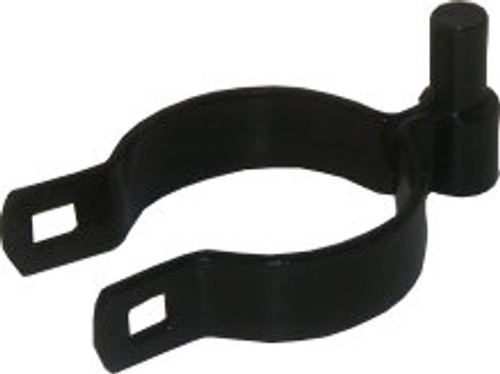

Color Pressed-Steel Male Strap Hinge for Chain Link Gates — 5/8″ Pin (Black, Green, Brown)
- Post-Side Hinge — Clamps to round color chain link posts with a single 3/8″ carriage bolt (length varies by size; not included)
- Standard 5/8″ Pin — Pairs with common 5/8″ female strap hinges on the gate frame upright
- Color-Coated Pressed Steel — Tough, economical hardware finished to match Black, Green, or Brown systems
- Weather-Resistant — Durable color coating over steel for outdoor service
- Multiple Post Sizes — Options for 1-3/8″, 1-5/8″, 2″, 2-1/2″, and 3″ posts (see Specs)
Create a clean, color-matched pivot on round posts with a color pressed-steel male strap hinge. The strap wraps the post and tightens with one 3/8″ carriage bolt while the 5/8″ pintle accepts a matching female strap hinge on the gate. It’s the familiar, field-proven hinge style—now finished in Black, Green, or Brown to blend with your color framework and fittings.
Why Choose This
- Simple & fast — Clamp-on install with a single carriage bolt
- Standard interface — 5/8″ pin fits widely used female strap hinges
- Color match — Coordinates with color framework, wire, and accessories
- Durable — Pressed-steel body with a tough color coating
Specifications
| Hinge Size (Post Selection) | 1-3/8″ | 1-5/8″ | 2″ | 2-1/2″ | 3″ |
| Actual Post Size (O.D.) | 1-3/8″ | 1-5/8″ | 1-7/8″ | 2-3/8″ | 2-7/8″ |
| Pin Size | 5/8″ | 5/8″ | 5/8″ | 5/8″ | 5/8″ |
| Finish / Colors | Color-coated pressed steel — Black, Green, Brown | ||||
| Required Bolt (Not Included) | 3/8″ × 2″ carriage bolt | 3/8″ × 2-1/2″ carriage bolt | 3/8″ × 2-1/2″ carriage bolt | 3/8″ × 3″ carriage bolt | 3/8″ × 3-1/2″ carriage bolt |
| Included Hardware | Hinge only — carriage bolt, nut, and washers sold separately | ||||
| Typical Usage | Residential & light commercial color chain link walk/drive gates | ||||
Installation
Mark hinge locations on the post. Wrap the strap around the post, insert the specified 3/8″ carriage bolt, and tighten until snug—secure enough to prevent rotation without deforming the post. Mount 5/8″ female strap hinges to the gate upright, hang the leaf on the pintles, and fine-tune reveal by loosening/re-tightening as needed. Use two hinges for most gates; add a third for tall or heavy leaves.
Buying Guide
- Match your post: Choose the size that matches the actual post O.D. in the Specs table.
- Pin size pairing: Uses a 5/8″ pin; pair with 5/8″ female strap hinges on the gate frame.
- Color selection: Pick Black, Green, or Brown to coordinate with your color framework and fittings.
- Alternatives: For clamp-on installs with more bearing area, consider a color malleable U-bolt hinge. For maximum projection adjustability, use a male J-bolt (typically galvanized). For wood posts, choose a male lag-screw hinge.
Frequently Asked Questions
- Which female hinge fits this?
- Standard 5/8″ female strap hinges that clamp to the gate upright.
- Are carriage bolts included?
- No—order the correct 3/8″ carriage bolt length for your hinge size (see Specs).
- Will the color match my fence?
- These hinges use common Black, Green, and Brown finishes for color chain link systems. Shade can vary by manufacturer—ordering within the same system provides the best match.
- Can I use this on wood posts?
- It’s designed for round metal posts. For wood posts, use a male lag-screw hinge instead.
- How many hinges do I need?
- Two for most residential gates; three (or more) for tall/heavy gates or high-traffic installations.
Comparison
| Option | Strengths | Considerations | Best For |
|---|---|---|---|
| Color Pressed-Steel Male Strap (this item) | Economical; fast install; color-matched finish | Less projection adjust than J-bolts | Residential color chain link gates |
| Color Malleable U-Bolt Hinge | Clamp-on with more bearing area; color-matched | Post-size specific; limited projection adjust | Round-post systems, quick installs |
| Galvanized Male J-Bolt Hinge | Highly adjustable projection; fits mixed post types | Requires through-drilling the post; typically silver finish | Retrofits & fine-tuning reveals |
| Male Lag-Screw Hinge (Wood) | Threads into wood; no through-bolts | Wood posts only; limited adjustability | Chain link on wood posts |
Need help matching post size, bolt length, or pairing with female hinges? Contact us and we’ll help you dial in the setup.
