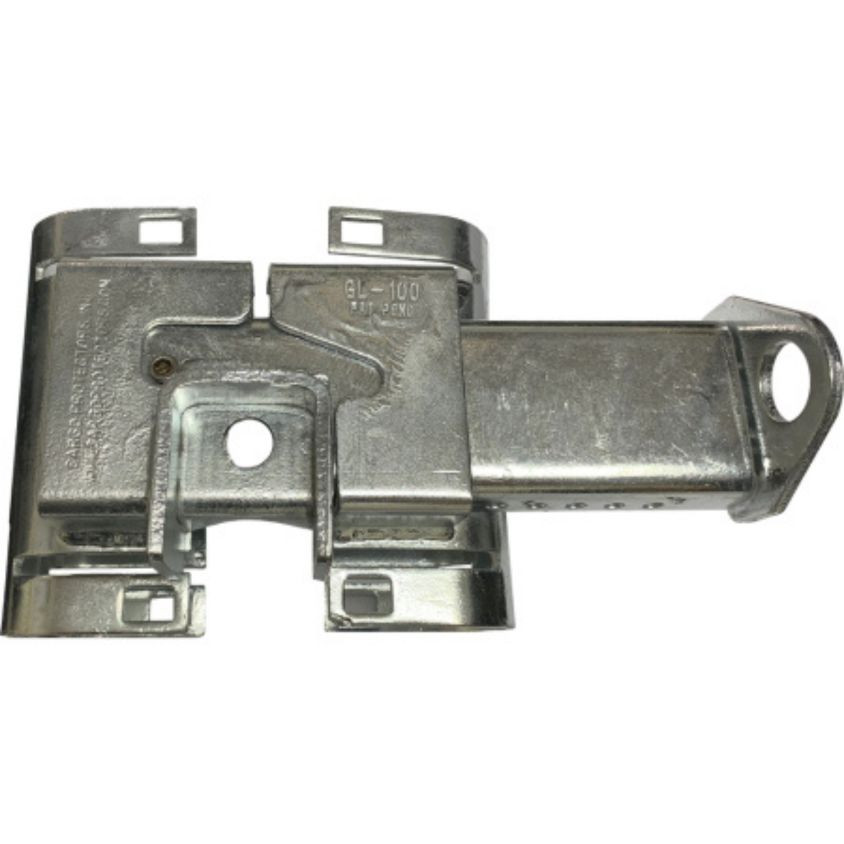

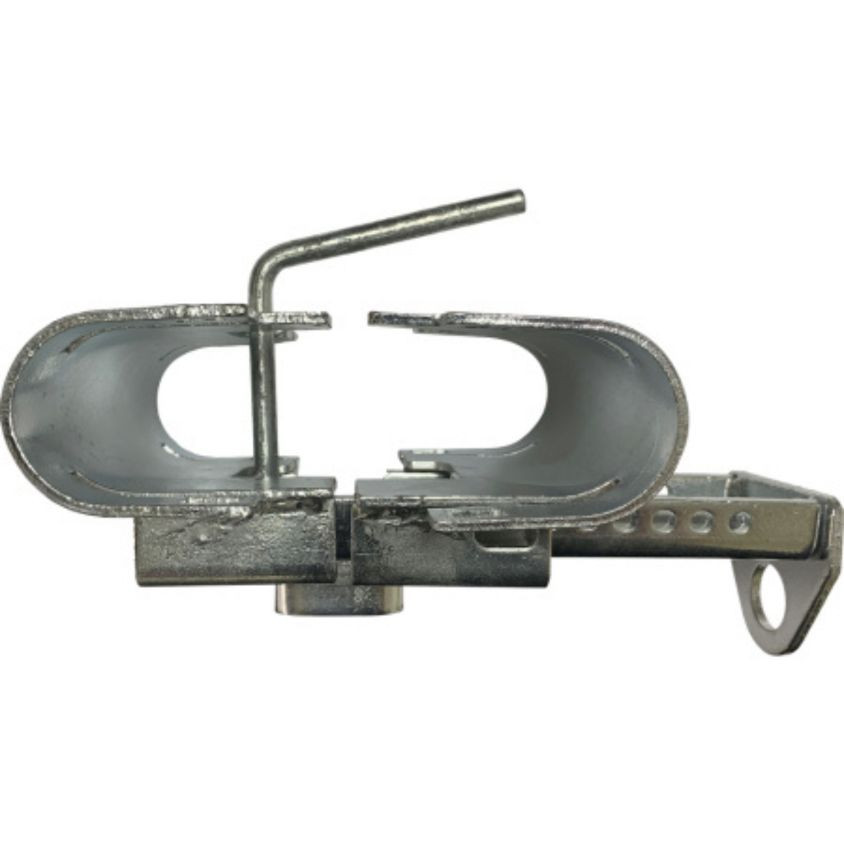

GL100 Ultra Security Double Drive Industrial Gate Latch - Fits 1-5/8" or 2" Round Gate Frames

Product Description

GL100 Ultra Security Double Drive Industrial Gate Latch – Fits 1-5/8" or 2" Round Gate Frames

• Extreme Duty Double Drive Gate Latch — Designed for high-security industrial and commercial double swing chain link gates.
• Ultra Security Padlock Protection — Built-in housing helps protect the padlock from bolt cutter access.
• Dual-Sided Operation — Padlock and latch can be accessed and operated from both sides of the gate.
• No Drop Rod Required — Eliminates ground sleeves and rod maintenance.
• Adjustable Gate Opening — Fits openings from approximately 3″ to 6″ between gate leaves.
• Fits 2″ Round Gate Frames — Also accommodates 1-5/8″ frames using included spacers.
• High-Security Interlocking Design — Gate remains locked even if mounting bolts are removed.
• Heavy-Duty Construction — One of the strongest latch options available for industrial gate systems.

The GL100 Ultra Security Gate Latch from Cargo Protectors is an extreme-duty solution engineered for maximum security on double drive chain link gates. Designed for industrial facilities, commercial properties, and high-risk access points, the GL100 provides a superior level of protection compared to standard gate latches. Its unique interlocking design secures both gate leaves together while shielding the padlock from tampering and bolt cutter attacks.

Unlike traditional double gate latches that rely on exposed locking points or drop rods, the GL100 eliminates ground engagement entirely while maintaining a highly secure connection. The latch is fully adjustable for gate openings from 3″ to 6″ and is compatible with both 2″ round gate frames and smaller 1-5/8″ frames using included spacers. This flexibility, combined with its heavy-duty construction, makes it one of the most robust and secure gate latching systems available for demanding applications.

Why Choose the GL100 Ultra Security Gate Latch?

• Maximum Security Design — Padlock is protected within the latch housing to reduce access for cutting tools.
• Heavier Duty Than Standard Latches — Built for high-security industrial and commercial environments.
• No Ground Hardware Needed — Eliminates drop rods and reduces maintenance issues.
• Reliable Gate Alignment — Interlocking design keeps both gate leaves properly secured.
• Dual-Sided Access — Convenient operation from either side of the gate.
• Flexible Fitment — Works with both 2″ and 1-5/8″ gate frames.

Specifications

Installation

1. Mount each half of the latch to the leading uprights of each gate leaf.
2. Position at a comfortable operating height (typically 36″–48″ above grade).
3. Close the gates and align the interlocking latch components.
4. Adjust spacing within the 3″–6″ range for proper engagement.
5. Tighten all hardware and install padlock.

Buying Guide: GL100 vs Fence-Loc Latches

The GL100 Ultra Security Latch is the best choice when maximum security is required for double drive gates. It is the heaviest-duty latch offered by Cargo Protectors and is designed for high-risk or high-value areas where tamper resistance is critical.

For standard industrial applications, the Fence-Loc FL100 provides excellent security with a simpler bolt-on installation and adjustable fit for most gate openings.

If you are fabricating a gate or want a permanent, non-removable solution, the Fence-Loc FL200 installs directly into the gate structure during fabrication and maintains consistent alignment over time.

Compared to both options, the GL100 provides the highest level of protection with a more robust design and enhanced padlock shielding, making it the preferred choice for high-security installations.

Frequently Asked Questions

What type of gates is the GL100 designed for?

The GL100 is designed for double swing chain link gates in industrial and commercial applications.

Will this fit a 1-5/8" gate frame?

Yes. The GL100 includes spacers that allow it to fit 1-5/8″ round gate frames as well as 2″ frames.

Does this latch require a drop rod?

No. The GL100 eliminates the need for a drop rod or ground sleeve.

Is the padlock protected from bolt cutters?

Yes. The latch design helps shield the padlock, making it more resistant to cutting tools.

Comparison

Need help choosing the right latch for your application? Contact us and our team will help you select the best solution for your project.
