Product Description
Heavy Duty Black Cane Bolts – Pad-Lockable Drop Rods, Multiple Lengths
- Heavy-duty steel construction — .60" diameter zinc-coated steel with rust-resistant black powder coat finish for long-term outdoor performance.
- Pad-lockable drop rod — Pre-drilled holes allow a padlock (not included) to lock the cane bolt in the lowered (locked) position for secure gate restraint.

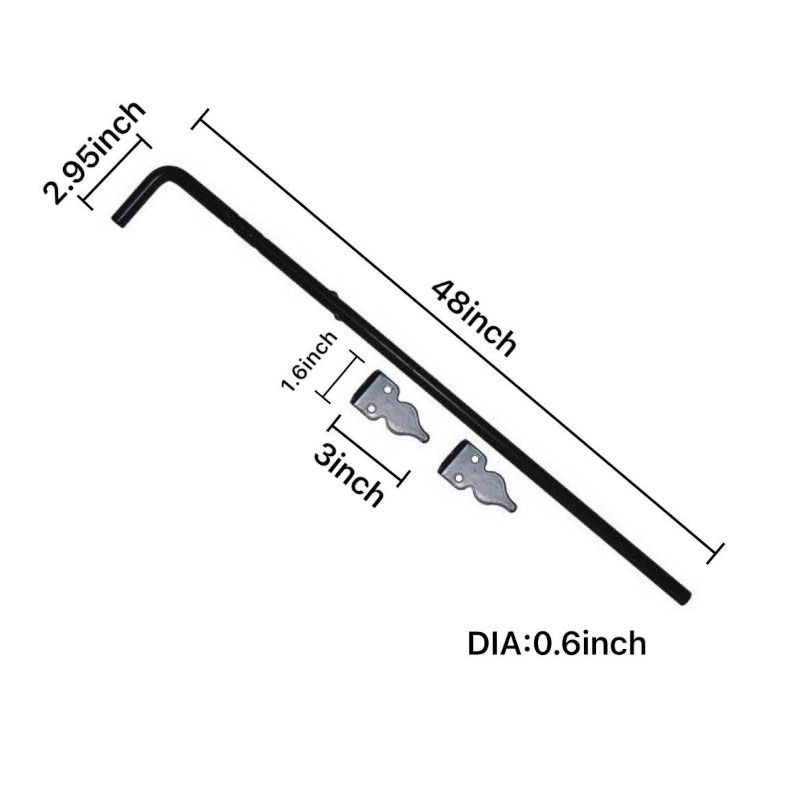

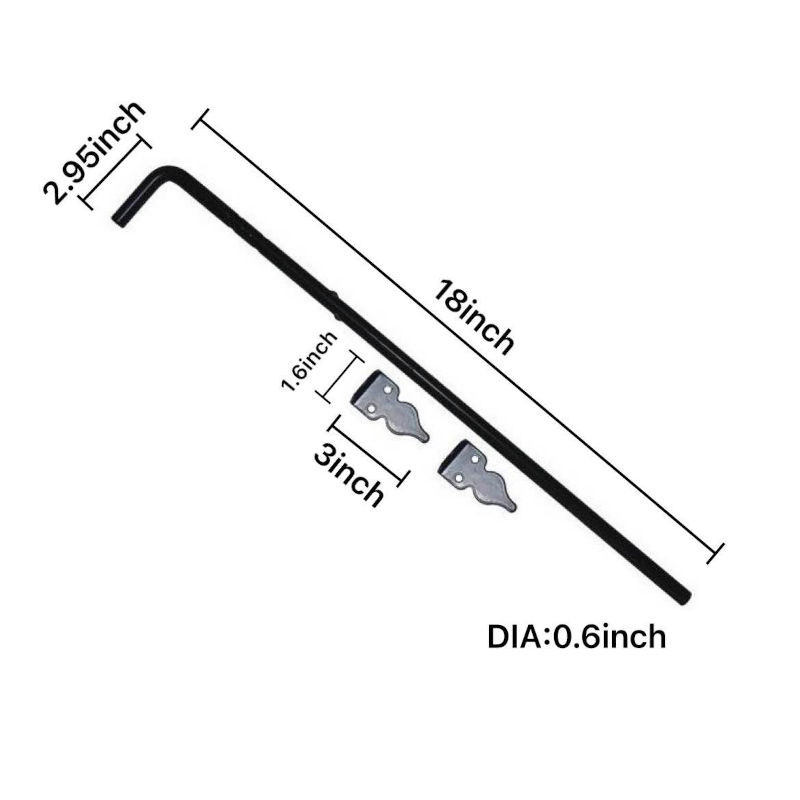

- Multiple length options — Available in 18", 24", 36", and 48" long sizes to accommodate a variety of gate heights and installation needs.

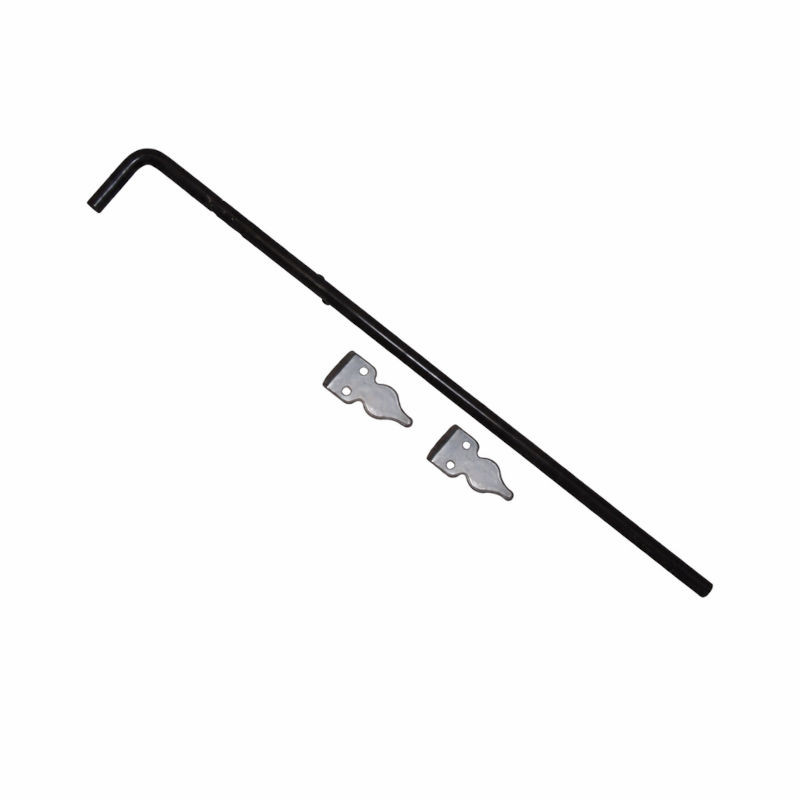

- Includes 2 guides — Top and bottom guides hold the cane bolt in the up or down position for smooth, consistent operation.
- Versatile gate compatibility — Works with wood, vinyl, composite, or metal fence gates when mounted into solid framing.
These Heavy Duty Black Cane Bolts (drop rods) are designed to provide dependable gate stabilization and security for fence gates of all types, including wood walk gates, driveway gates, and paired double gates. The .60" diameter zinc-coated steel shaft and robust black powder coat finish stand up to outdoor exposure while resisting rust and corrosion.
Cane bolts play a key role in securing the inactive leaf on double gates, locking gates into the ground or frame, and preventing unwanted movement. Each bolt comes with two guides to support the rod in both the raised (open) and lowered (locked) positions. Pre-drilled holes in the rod allow a padlock (not included) to secure the bolt in place, enhancing gate security when needed.
For complementary wood gate hardware solutions, consider pairing your cane bolt with a full hardware kit like the Heavy Duty Traditional Walk Gate Hardware Kit for Wood Gates or the Heavy Duty Contemporary Walk Gate Hardware Kit for Wood Gates.
Why Choose These Heavy Duty Black Cane Bolts
- Enhanced gate stability — Secures inactive gate leaves or locks gates into ground or frame for reliable performance.
- Pad-lockable security — Bolt holes allow adding a padlock (not included) to prevent rod movement in the locked position.
- Multiple size options — Choose the right length for your gate height and application.
- Durable exterior finish — Rust-resistant black powder coat over zinc steel withstands weathering.
- Easy installation — Includes two guides and installs into structural framing for a secure fit.
Specifications
| Product Type | Heavy Duty Black Cane Bolts / Drop Rods |
| Material | Zinc-coated steel |
| Finish | Black powder coat |
| Diameter | 0.60" |
| Available Lengths | 18", 24", 36", 48" |
| Pad-Lockable | Yes (padlock not included) |
| Guides Included | 2 guides (top and bottom) |
Installation
- Select the correct cane bolt length based on gate height and mounting position.
- Snap or screw guides into wood framing at positions that allow the cane bolt to slide easily up and down.
- Position the bottom guide at the height where the bolt will enter the ground or frame receiver when lowered.
- Install the top guide so the bolt remains steady when raised.
- Test travel up and down before final tightening of guides.
- Add a padlock through the pre-drilled hole when locking the cane bolt in the down position (padlock not included).
Buying Guide
- Best for: Double gates, driveway gates, wood walk gates, and fence gates where additional stability and locking are desired.
- Length selection: Choose 18" or 24" for standard walk gates; 36" or 48" for larger driveway or taller gates.
- Pad-lockable feature: Use standard padlocks (not included) for added security.
- Guide placement: Proper guide placement ensures smooth operation and reduces wear on the cane bolt.
Frequently Asked Questions
- Are padlocks included?
No. Padlocks are not included but can be added through the pre-drilled holes in the bolt for secure locking. - Can these cane bolts be used on vinyl or composite gates?
Yes. They work with vinyl or composite gates when mounted into solid structural backing. - How do I choose the right length?
Match the cane bolt length to your gate height and how far down you want the bolt to reach. Longer bolts are commonly used on taller driveway or enclosure gates. - What do the guides do?
Two guides keep the cane bolt steady when raised or lowered and help prevent binding or rattling.
Comparison
- Cane Bolts vs. Traditional Gate Latches — Cane bolts secure the inactive gate leaf or lock gates into the ground, while latches secure the active gate leaf to the post or frame.
- Iron vs. Pad-Lockable Drop Rod — Pad-lockable bolts allow optional security beyond simply dropping the rod into a guide or ground hole.
- Multiple Lengths vs. One Size — Different lengths let you choose the right bolt for walk gates, driveway gates, or larger enclosure gates.
If you need help choosing the right cane bolt size or gate hardware for your project, contact us and our team will be glad to assist.
