Product Description

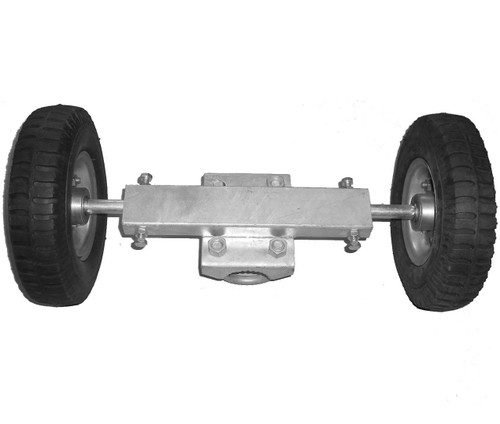

Rut Runner Pneumatic Double Wheel Carrier — Galvanized, 8″ Tires for Rolling Chain Link Gates
- Rolls Over Rough Ground — Pneumatic (air-filled) tires absorb bumps on dirt, gravel, and grass
- Heavy-Duty, Weather-Ready — Galvanized steel carrier resists rust for long outdoor service
- Adjustable Fit — U-bolt clamp mounts to 1-5/8″ or 1-7/8″ O.D. (2″ nominal) gate frames
- Straight Tracking — Dual wheels stabilize the leading edge for smoother opens and closes
- Field-Friendly Setup — Bolt on in minutes; weld after alignment if a permanent install is desired
When your rolling chain link gate has to cross something other than smooth concrete, a pneumatic double wheel carrier is the right call. The Rut Runner uses air-filled tires to cushion impacts and maintain traction across gravel, lawn, limestone drives, and other uneven approaches. Its galvanized steel frame stands up to weather, and the adjustable U-bolt mount fits common residential and light-commercial round frames. This is a durable, professional grade solution for farms, utility yards, oil & gas sites, and busy residential drive entries where the surface isn’t perfectly flat.
Why Choose This
- Uneven-terrain specialist — Air-filled tires roll where solid wheels can chatter or hang up
- Durable build — Zinc-galvanized carrier and hardware for year-round use
- Dialed-in operation — Adjustable height/angle helps both wheels share the load
- Flexible install — Clamp on for quick alignment; optional stitch-weld for maximum rigidity
Specifications
| Wheel Size | 8″ pneumatic (air-filled) |
| Actual Gate Framework Size (O.D.) | 1-5/8″ or 1-7/8″ (fits 2″ nominal) |
| Wheel Type | Pneumatic, dual-wheel carrier |
| Weight | 15 lbs |
| Material | Galvanized Steel |
| Finish | Silver (zinc galvanized) |
| Typical Usage | Farms, Fields, Oil & Gas, Utility, Uneven/soft approaches |
Installation
Mount the carrier to the leading edge of the gate’s bottom frame using the included U-bolts. Set height so both wheels share the load and roll freely on the approach. Tighten hardware and test full travel. For a permanent installation, stitch-weld after alignment (optional). Clear the wheel path of large debris for best performance.
Buying Guide
- Surface matters: Choose pneumatic wheels when your approach is dirt, gravel, lawn, or uneven hardscape. For smooth, level concrete/asphalt, a solid-wheel carrier is typically sufficient.
- Frame size: Verify round frame O.D. — 1-5/8″ or 1-7/8″ (2″ nominal). Tighten clamps evenly and re-check after initial cycles.
- Gate layout: One double wheel carrier usually supports the front (leading) edge; the rear rides on track and rear rollers.
- Maintenance: Check tire pressure periodically; keep the path clear of sharp debris to extend tire life.
Frequently Asked Questions
- Does it include mounting hardware?
- Yes. U-bolts and nuts for 1-5/8″ or 1-7/8″ O.D. frames are included.
- Will this work on gravel or lawn?
- Yes. Pneumatic, air-filled tires are designed to roll over uneven ground such as gravel, dirt, and grass where solid wheels struggle.
- How many carriers does a gate need?
- Typically one double wheel carrier at the leading edge of a single rolling gate; the rear rides on pipe track and rear wheels.
- Can I weld it instead of just bolting?
- Yes. Bolt-on makes alignment easy; optional stitch-welding after alignment adds rigidity for heavy, high-cycle gates.
- What frame sizes does it fit?
- It fits 1-5/8″ and 1-7/8″ actual O.D. round frames (2″ nominal).
Comparison
- Rut Runner Pneumatic Carrier (this item): Best on gravel, dirt, lawn, and uneven approaches; adjustable clamp-on fit; optional weld-on.
- Solid-Wheel Double Carrier: Lower upkeep and great on smooth, level concrete/asphalt; can chatter or bind on rough terrain.
- Cantilever/Track Systems: Excellent for very wide/heavy openings; higher cost and more components than a simple leading-edge carrier.
