Superior Outdoors 400 Series 36" or 42" York Deckboard Vinyl Railing Level Sections - Choose Your Height, Length, & Color

Product Description

Note: The product image shown is an AI-generated representation of the product and may not reflect exact details or spacing.

Superior Outdoors 400 Series 36" or 42" York Deckboard Vinyl Railing Level Sections – Choose Your Height, Length & Color

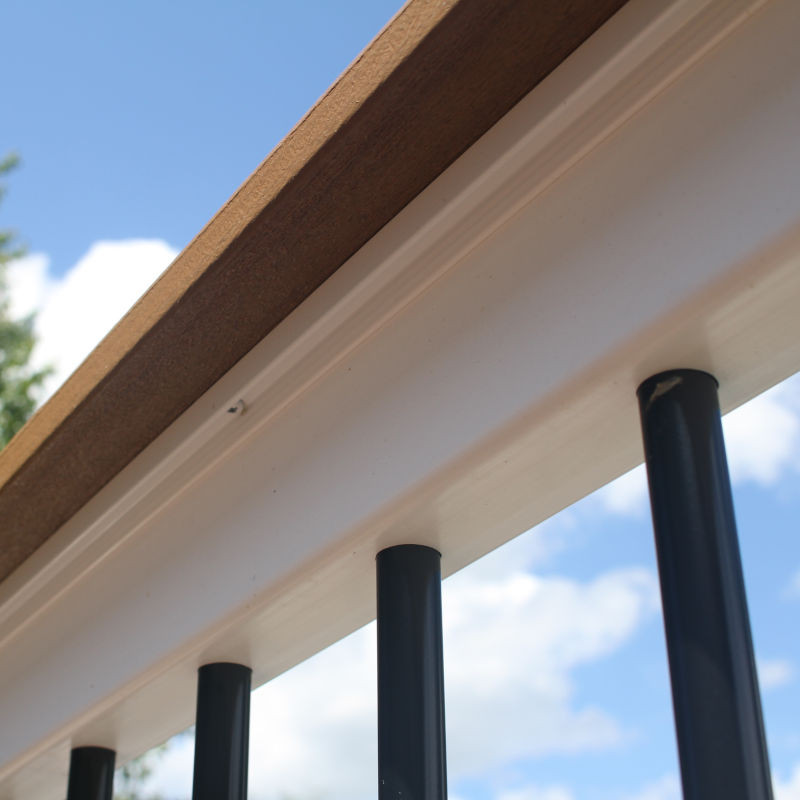

• Entertain-ready drink rail design — 400 Series sections feature a pre-attached aluminum deckboard receiver on the top rail so you can add a deckboard of your choice and create a wide, functional drink rail (deckboard not included).
• 36" or 42" guard heights — Choose 36" sections for most residential decks and porches or 42" sections for elevated decks and applications where a taller guard height is preferred (always confirm local code requirements).
• 6' and 8' boxed level sections — Level kits in 6' and 8' lengths give you flexibility for layout and can be cut to length on site to fit between posts while maintaining proper baluster spacing.
• York round aluminum infill — Uses 3/4" round York aluminum balusters in a black finish for a clean, modern look and strong infill that contrasts nicely with the vinyl rails.

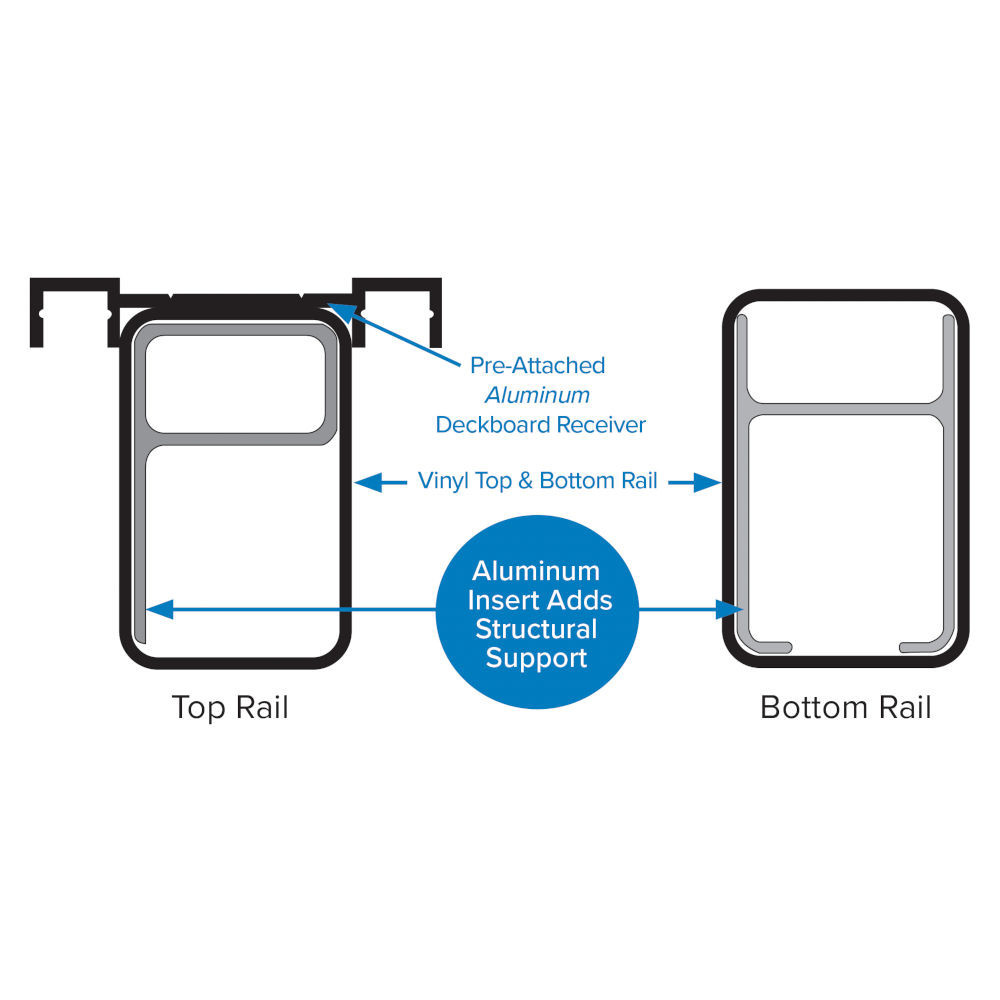

• Aluminum-reinforced vinyl rails — Vinyl top and bottom rails are internally reinforced with aluminum inserts for added stiffness and long-term structural performance on longer spans.
• Four neutral rail colors — Available in White, Almond, Clay, and Black to coordinate with common trim, window, and decking colors across a variety of home styles.
• USA-made, code-focused system — Manufactured in the USA from high-quality vinyl and aluminum and engineered as a guardrail system with third-party testing to IBC/IRC criteria when installed per current specifications.
• Complete, boxed kits — Each level section includes top rail with deckboard receiver, bottom rail, York balusters, level mounting brackets with screws, and an installation guide; posts, caps, trim, and deckboards are sold separately.

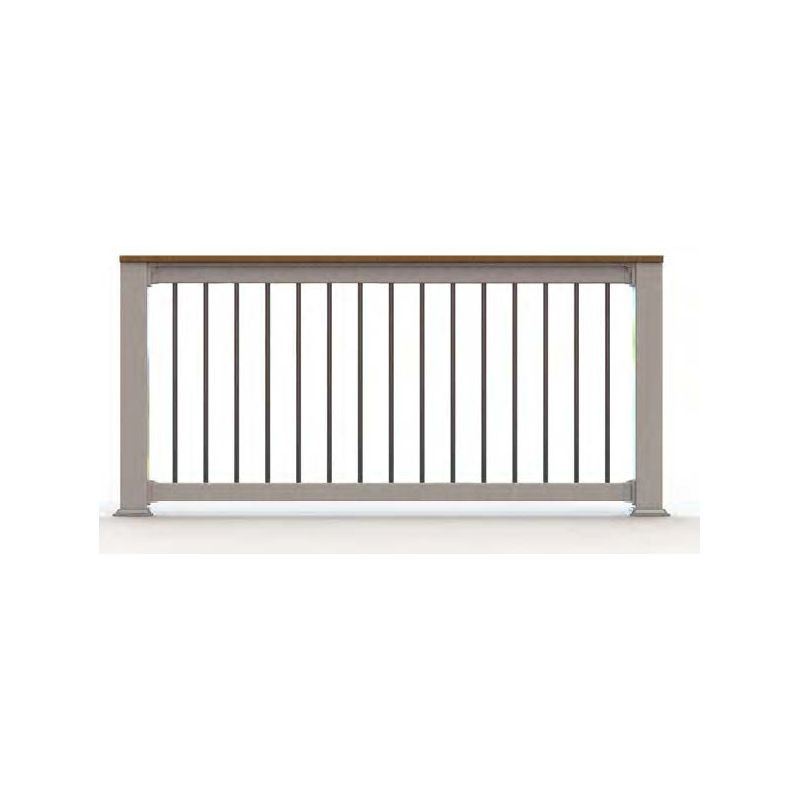

The Superior Outdoors 400 Series York Deckboard Vinyl Railing brings together a low-maintenance vinyl/aluminum guardrail with a built-in drink rail receiver, making it ideal for entertaining-focused decks and patios. Each boxed level section pairs an aluminum-reinforced vinyl top rail (with pre-attached deckboard receiver) and bottom rail with 3/4" round York aluminum balusters in black, creating a sleek, mixed-material look that works on both traditional and contemporary homes. With 36" and 42" height options, 6' and 8' section lengths, and color choices in White, Almond, Clay, and Black, it’s easy to design a deckboard-top railing layout that feels custom while still using factory-kitted components.

Why Choose This Railing Section

• Purpose-built for drink rails — The pre-attached deckboard receiver on the top rail simplifies building a wide drink rail, giving guests a convenient spot to rest drinks, plates, or phones without custom metal fabrication.
• York round baluster style — 3/4" round black aluminum balusters deliver a more open, contemporary look than vinyl pickets while adding rigidity and long-term durability.
• Flexible for residential and light commercial — 36" and 42" heights align with common IBC/IRC guardrail applications when used with appropriate posts and mounts (always verify with local building officials).
• Low maintenance vs. wood rail — Vinyl and aluminum construction means no painting, staining, or splintering; most installs only need periodic cleaning with mild soap and water.
• Structured, code-oriented design — Aluminum-reinforced rails, tested guard performance, and published technical specs help installers and inspectors trust the system on decks, balconies, and porches.
• Works with a wide range of deckboards — Because the receiver is aluminum and the deckboard is supplied by you, you can match existing composite, PVC, or wood decking for a cohesive, built-in look.

Specifications

Installation

Plan your 400 Series York layout by marking post locations at the appropriate on-center spacing for 6' or 8' sections, factoring in gate openings and corners. Install structural posts and 4" post sleeves per Superior’s instructions and local building codes, ensuring posts are plumb and properly anchored. Cut the level section to fit between posts if needed, keeping manufacturer-recommended clearances at each end, then fasten the included level brackets to the posts and secure the bottom and top rails. Insert the 3/4" round York aluminum balusters into the routed or bracketed openings as directed, confirm baluster spacing meets code, and snap on any bracket covers. After the rail section is fully installed and secure, fasten your chosen deckboard to the aluminum receiver using compatible fasteners in accordance with the deckboard manufacturer’s guidelines.

Buying Guide

• Choose height for your application — Use 36" level sections for most residential deck and porch guards; choose 42" sections for taller decks, balconies, or regions that require a 42" height.
• Pick section lengths strategically — Use 8' sections to minimize posts on long, straight runs and 6' sections where you expect shorter spans, jogs, or frequent changes in direction.
• Match your rail color to the project — White works well with traditional and coastal homes, Almond and Clay complement warmer siding tones, and Black provides a bold, modern frame for composite or wood decks.
• Select a deckboard material — Plan whether your drink rail will match your main deck boards or intentionally contrast (for example, a darker composite board on a white railing for visual pop).
• Don’t forget posts and accessories — Add compatible post sleeves, post mounts, caps, and post trim to complete the system, and consider gates where you need access to stairs or yard areas.
• Verify code and span requirements — Always confirm maximum allowable spans, guard heights, and baluster spacing with local building officials and current Superior technical documents before ordering.

Frequently Asked Questions

What heights and lengths are available for 400 Series York deckboard level sections?

400 Series York deckboard level railing sections are available in 36" and 42" guard heights and 6' or 8' lengths, which can be cut to fit between posts on site.

Does the 400 Series York deckboard railing include the deckboard?

No. The top rail comes with an aluminum deckboard receiver, but the actual deckboard is not included so you can match or contrast with your existing decking material.

What kind of balusters does the York deckboard railing use?

The York deckboard railing uses 3/4" round aluminum balusters in a black finish, providing a clean, modern look and strong, durable infill.

Are posts and caps included with the 400 Series York deckboard sections?

No. Level sections include rails, balusters, brackets, and hardware, but you’ll order posts, post sleeves, post caps, and post trim separately to suit your layout.

Is the 400 Series York deckboard railing code compliant?

Yes. The 400 Series railing is engineered and third-party tested as a guard system to meet IBC/IRC requirements when installed according to Superior’s specifications and current code reports; always verify with your local building authority.

Where is the 400 Series York deckboard railing typically used?

This railing is commonly used on decks, porches, and balconies where homeowners want a low-maintenance vinyl/aluminum guard with a built-in drink rail for entertaining.

Comparison

To complete your 400 Series York deckboard railing, pair these level sections with compatible newel posts, post mounts, post caps, and matching 400 Series stair or gate components. If you’d like help planning a full materials list, comparing York to other 200 or 3000 Series options, or confirming what’s required for your local code, please contact us.
