Product Description

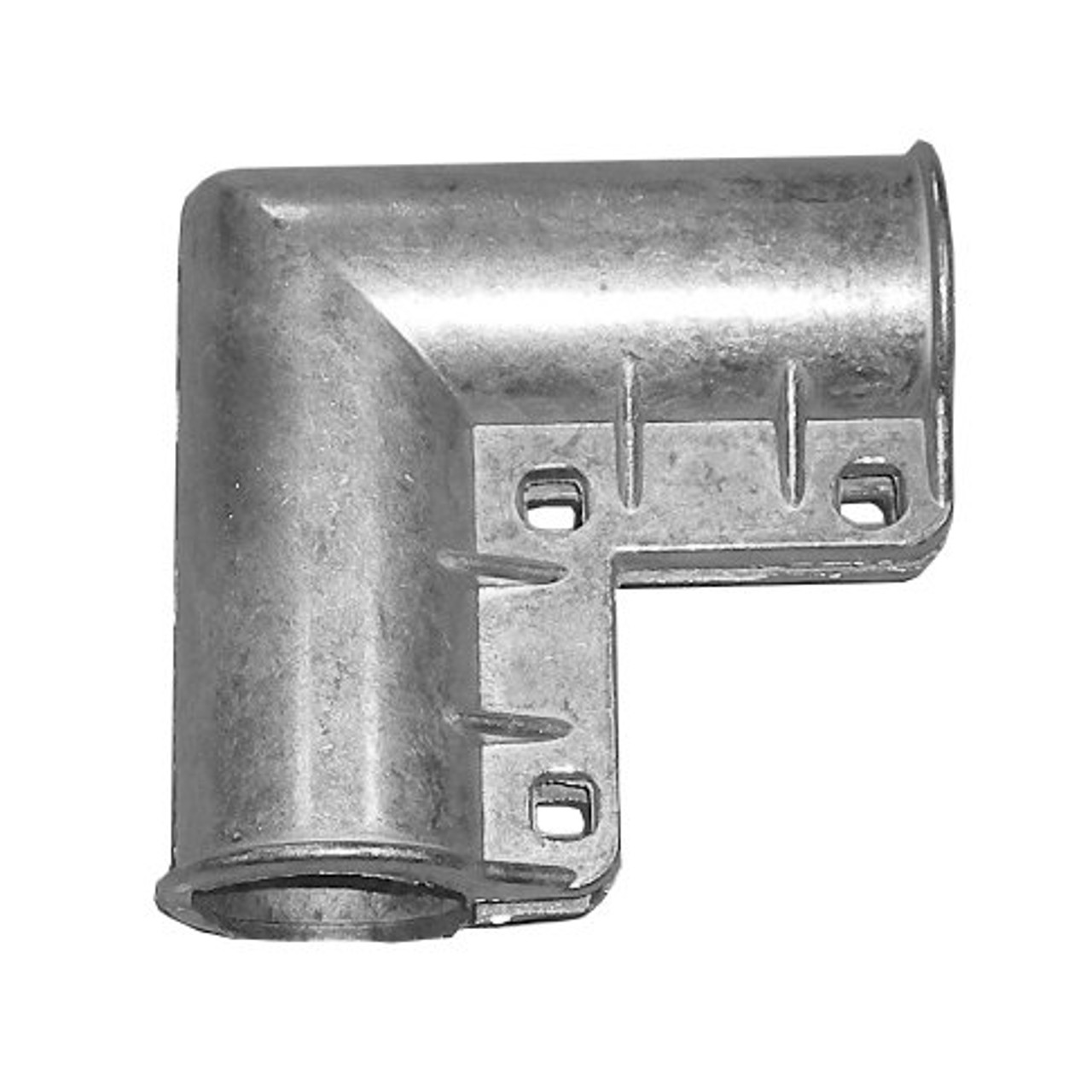

Aluminum 3-Bolt Gate Corner for Chain Link — Fits 1-3/8″ Frame, Rust-Free, No-Drill Assembly
- Build Square Gate Frames Fast — Slide 1-3/8″ pipe into the corner and tighten three included bolts
- Rust-Free Aluminum — Lightweight, corrosion-resistant body for long outdoor service
- No Drilling Required — Clean clamp design eliminates through-bolting in the pipe
- Clean, Low-Profile Look — Compact casting keeps corners neat on walk gates and panels
- Installer-Friendly — Simple fit-up with basic hand tools; ideal for residential gate builds
Assemble a straight, square chain link gate frame without drilling holes or welding. This aluminum 3-bolt gate corner captures two rails and one upright of 1-3/8″ O.D. framework, then locks the joint with three carriage bolts and nuts (included). The rust-proof aluminum casting is light to handle yet durable—perfect for everyday residential walk gates and kennel panels. Choose these corners when you want a tidy appearance, quick installation, and dependable alignment from day one.
Why Choose This
- Time saver — Corner, fasteners, and clamp action are built in
- Durable outdoors — Aluminum won’t rust or flake like painted steel
- Repeatable alignment — Helps keep frames square during build and tensioning
- Professional grade — A proven, field-friendly corner for residential chain link gate construction
Specifications
Corner Type | 3-Bolt Aluminum Gate Corner |
Gate Pipe Size (O.D.) | 1-3/8″ |
Weight | 0.5 lb |
Material | Aluminum |
Finish | Silver |
Hardware | 3 Carriage Bolts & Nuts (Included) |
Typical Usage | Residential chain link walk gates, kennel/panel frames |
Installation
Dry-fit the frame on a flat surface. Slide the aluminum corner onto the pipe ends (two rails and one upright). Insert and snug the three included carriage bolts; square the frame and tighten evenly. Repeat for remaining corners. Re-check square after fabric tensioning and re-tighten if needed.
Buying Guide
- Confirm frame size: This corner fits 1-3/8″ O.D. pipe only. Use the matching size for all four corners of the gate leaf.
- How many corners? Most rectangular walk gates use four corners per leaf.
- When to choose aluminum vs. pressed steel: Aluminum offers rust-free durability and a clean look. Pressed-steel corners are another common option where heavier stamped steel is preferred.
- Square matters: Measure diagonals during assembly; equal diagonals indicate a square frame before hanging fabric.
Frequently Asked Questions
- What pipe does this fit?
- It’s designed specifically for 1-3/8″ O.D. chain link framework.
- Do I need to drill the pipe?
- No. The 3-bolt clamp design secures the rails and upright without through-bolting.
- How many do I need for a gate?
- Use four corners for a typical rectangular walk gate frame.
- Is the hardware included?
- Yes. Each corner includes three carriage bolts and nuts sized for the casting.
- Will aluminum hold up outside?
- Yes. Aluminum does not rust and is well-suited to outdoor residential gate use.
Comparison
- Aluminum 3-Bolt Corner (this item): No-drill, rust-free, clean appearance; ideal for residential walk gates.
- Pressed-Steel Corner: Heavier stamped steel alternative; commonly used where a steel corner is preferred.
- 3-Bolt Corner with Truss Hole: Similar function but includes a hole to anchor a truss cable if your gate design calls for it.
